E-AIR H185 VSD

Refnr. E-AIRH185 | ATLAS COPCO

E-AIRH185-EXT-N
in stock
E-AIRH185-WFB-N
in stock
Dagprijs
€98.00
Week (Dagprijs)
€63.00
Maand (Dagprijs)
€47.00

Specifications

CE mark
OK
Weight [kg]
649
Capacity [m³/min]
5.4
Pressure [Bar]
12
Power [kW]
34
Engine
Electric
Remarks
Variable adjustable pressure 5-12 bar; 5.4-3.7m³/min

Description

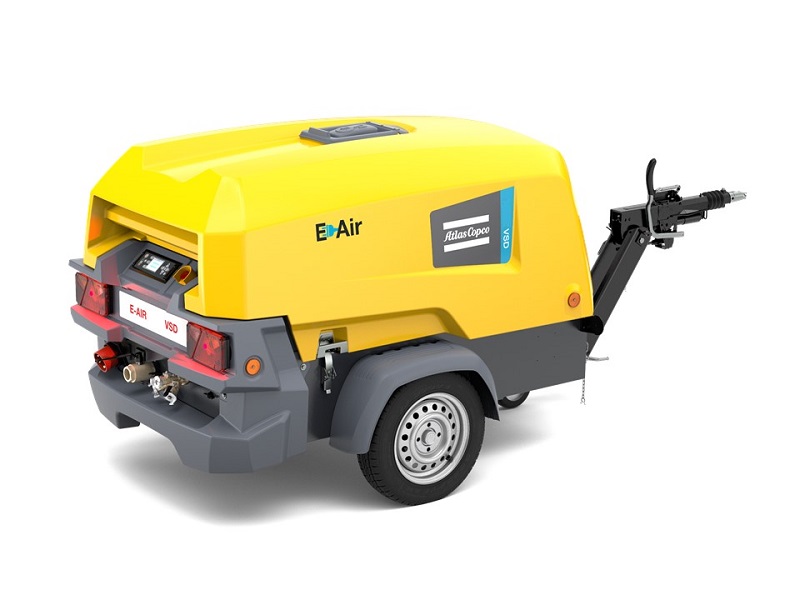

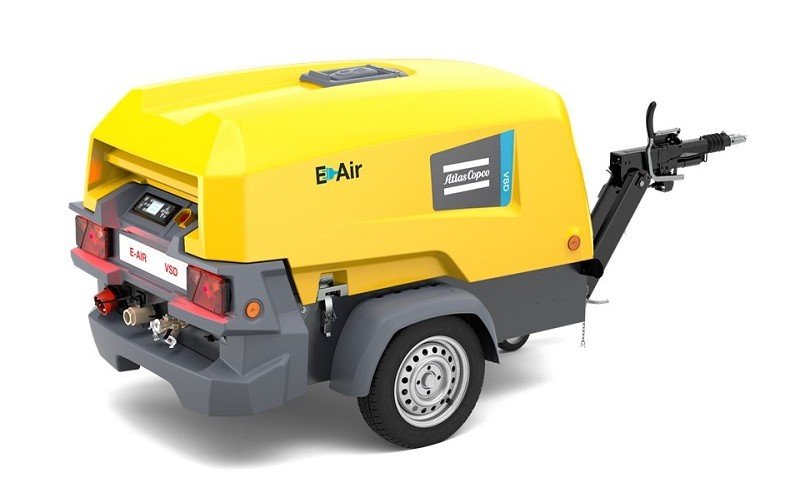

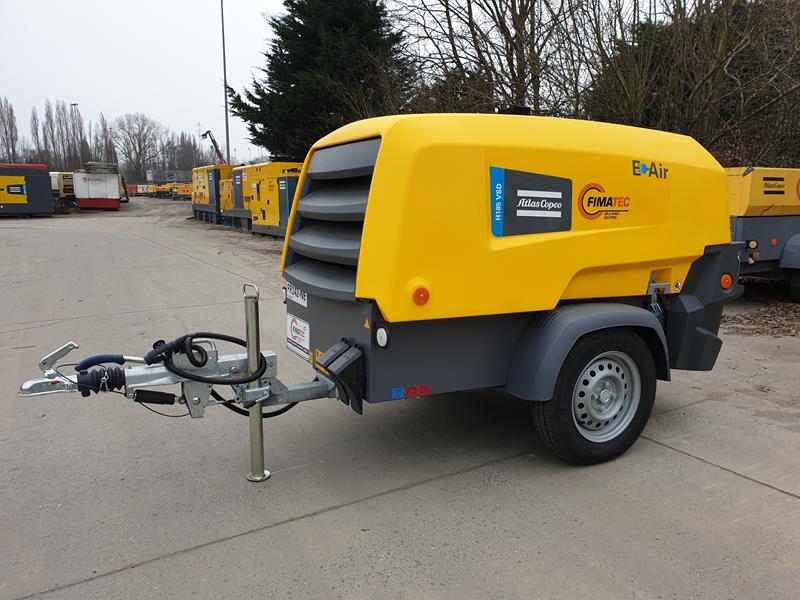

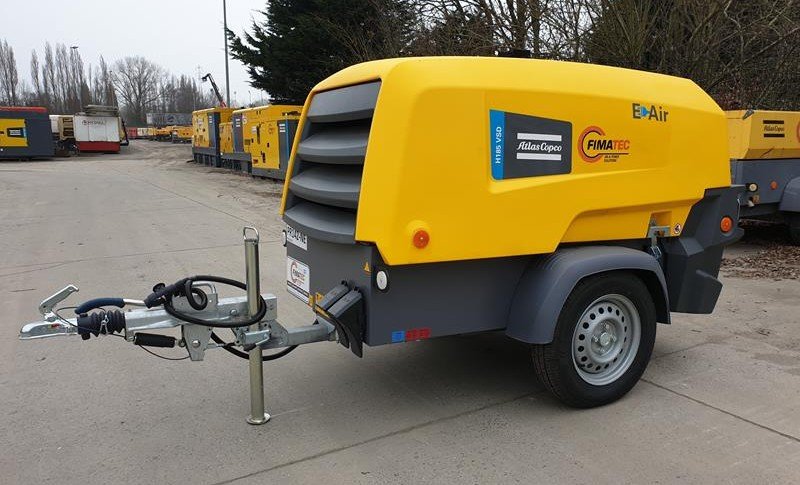

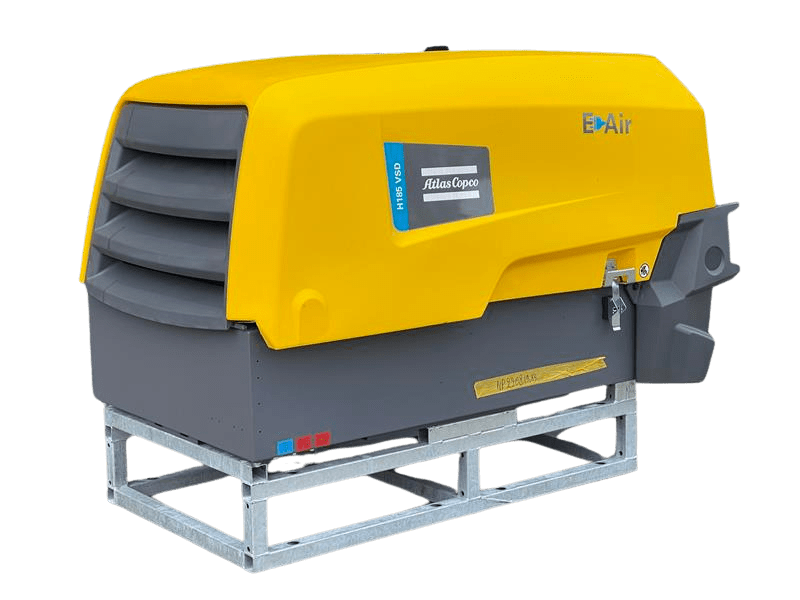

Fimatec E-Air H185 VSD: A Revolution in Energy Efficiency and Flexibility
Fimatec introduces the E-Air H185 VSD electric air compressor from Atlas Copco, a groundbreaking innovation in the compressor industry. Equipped with cutting-edge VSD (Variable Speed Drive) technology, this compressor combines exceptional performance with extraordinary energy efficiency and versatility, ideal for a wide range of industrial applications.
Key Features of the E-Air H185 VSD:

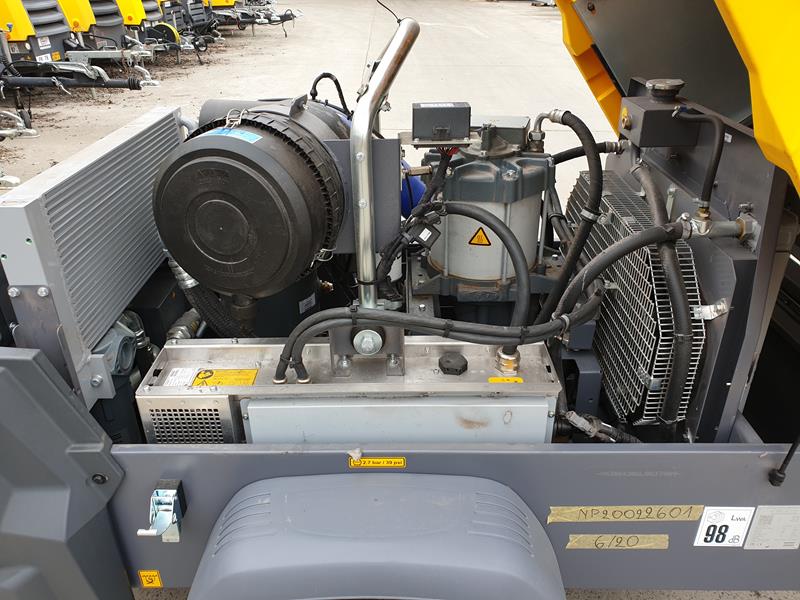

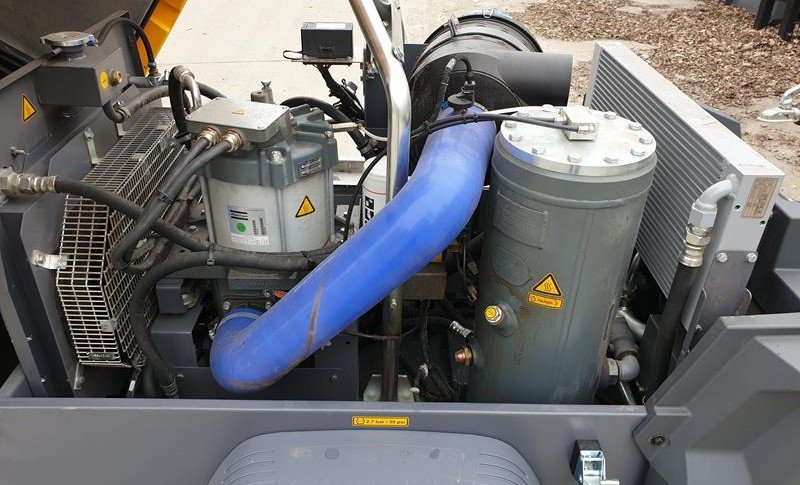

  • Energy Efficiency: Thanks to its integrated permanent magnet motor and variable speed control, this compressor is up to 50% more energy-efficient compared to traditional compressors under partial load.
  • Zero Emissions and Low Noise Level: With a sound pressure level of just 61 dB at 7 meters and zero emissions, this compressor is perfect for noise-sensitive and environmentally conscious settings.
  • Plug-and-Play Design: The E-Air is ready to use and easy to install, saving time and enhancing flexibility at any location.

Innovative PACE Technology: The E-Air comes equipped with PACE (Pressure Adjusted through Cognitive Electronics), an advanced electronic pressure control system that ensures optimal efficiency. By simply adjusting the pressure with a few clicks, this compressor can handle varying applications from sandblasting to fiber optic cable blowing.
Technical Specifications:
  • Working Pressure Range: 5 - 12 bar (72 - 174 psi)
  • Free Air Delivery: 5.4 to 3.7 m³/min
  • Maximum Ambient Temperature: 50°C
  • Installed Motor Power: 26 kW
  • Dimensions: 2765 x 1346 x 1435 mm
  • Weight: 749 kg

The E-Air H185 VSD is not only a powerful addition to your equipment but also an investment in sustainability and cost efficiency. Fimatec is committed to providing innovative solutions that not only meet but exceed the current demands of the industry. For more information about our products and how they can support your operational needs, contact our team.
